Battery Connector Replacement: BSI Line Jumper & Restart Solution | Lesson 33

Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 33 hai.

Pichle lesson mein humne Charging Jack badalna seekha tha. Aaj hum motherboard ke us hisse ki “Surgery” karenge jahan se phone ko saans (Power) milti hai: Battery Connector. Aaj hum sikhne wale hai Battery Connector Replacement.

Yeh topic dekhne mein chota lagta hai, lekin 80% “Auto Restart” ki samasya yahin se aati hai.

Grahak ki shikayat:

1. “Bhaiya, phone logo par aata hai aur wapas band hokar chalu (Restart) hota rehta hai.”
2. “Battery Error: Temperature too low/high charging stopped.”
3. “Phone patak diya tha, ab ON nahi ho raha (Connector toot gaya).”

Aaj hum seekhenge Battery Connector Replacement ka professional tareeka aur BSI Line ka raaz.

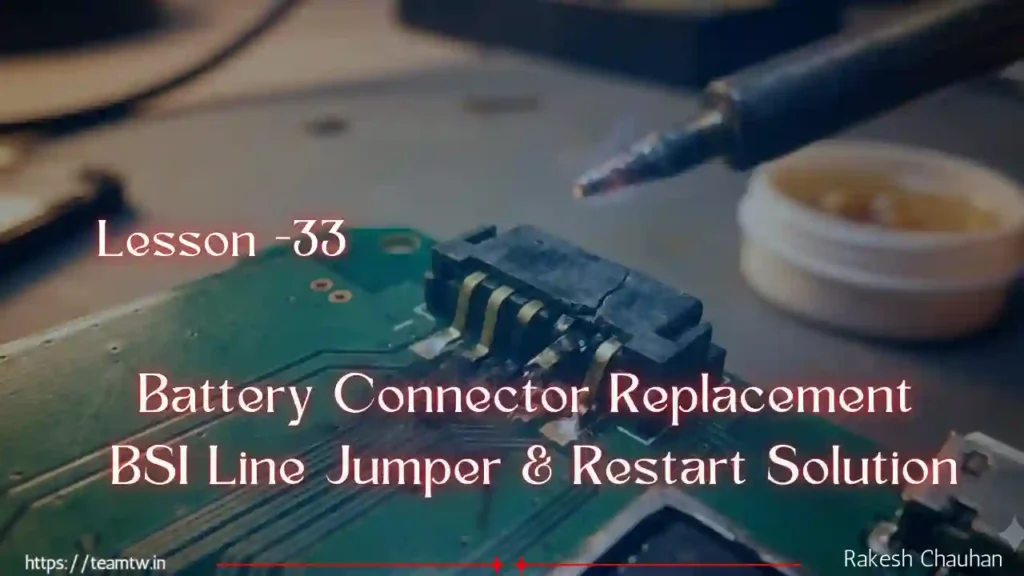

Battery Connector Replacement: BSI Line Jumper & Restart Solution

Step 1: The Anatomy (Pins Ko Pehchano)

Battery Connector par sirf Plus (+) aur Minus (-) nahi hota. Ismein 3 ya 4 pins hoti hain.

1. VBAT (+): Main Power Line (3.7V – 4.2V).
2. GND (-): Ground.
3. BSI (Battery Status Indicator):
   • Kaam: Yeh CPU ko batata hai ki battery asli hai ya nakli (ID Check).
   • Fault: Agar ye line break ho jaye, toh phone Restart Loop mein chala jaata hai.
4. TH (Thermal / Temp):
   • Kaam: Battery ka taapman (temperature) batata hai.
   • Fault: Agar ye line break ho jaye, toh “Battery Temperature Error” aata hai aur charging ruk jaati hai.

Step 2: Diagnosis (Restart Kyun Ho Raha Hai?)

Agar phone logo par restart ho raha hai, toh pehle ye confirm karein ki fault Software hai ya Battery Connector.

• The DC Machine Test:
  1. Phone ko battery ki jagah DC Power Supply se connect karein.
  2. Phone ON karein.
  3. Result:
     • Agar DC Machine se phone Poora ON ho gaya = Battery Connector (BSI Pin) ya Battery kharab hai.
     • Agar DC Machine se bhi Restart ho raha hai = Software ya Power IC fault hai.

Step 3: Cleaning & Resoldering (Sabse Pehle)

Mera tajurba kehta hai ki connector aksar toota nahi hota, bas pins par Carbon aa jaata hai ya wo Dab (Press) jaati hain.

1. Carbon Cleaning: Pins ko Fiberglass Pen ya Surgical Blade se halke haath se khurach kar chamkayein.
2. Pin Lifting: Chimti (Tweezer) se connector ki pins ko thoda sa Upar Uthayein (Lift) taaki battery lagne par connection tight bane.
3. Dry Solder Fix: Patli bit wale Iron aur Flux se pins ko dubara solder karein (Resoldering).

Step 4: Replacing Plastic Connector (The “Bottom Heat” Trick)

Agar connector ki plastic toot gayi hai, toh usey badalna padega. Lekin Hot Gun upar se chalayi toh connector pighal jayega.

Professional Technique:

1. Removal (Nikalna):
   • PCB ko stand mein lagayein.
   • Hot Gun (Settings: 350°C Heat / 4 Air) ko Board ke Neeche (Bottom Side) se chalayein.
   • Heat upar transfer hogi aur solder pighal jayega.
   • Chimti se connector ko turant utha lein. Plastic bilkul nahi pighlega!
2. Cleaning: Pads ko Desoldering Wick se saaf karke flat karein.
3. Installation (Lagana):
   • Naye connector ki pins par pehle solder lagayein (Tinning).
   • Connector ko board par rakhein.
   • Ab Soldering Iron se ek-ek pin ko solder karein. Lagate waqt Hot Gun ka use na karein taaki naya connector shape mein rahe.

Step 5: Jumper Solution (Ukhde Hue Prints)

Agar purana connector nikalte waqt board ke pads ukhad gaye, toh tension na lein. Jumper maarein:

• VBAT (+): Multimeter (Beep Mode) se paas ka koi bada Capacitor dhoondhein jo Positive line se juda ho. Wahan jumper lagayein.
• GND (-): Kahin bhi body ground (Steel plate) se jod dein.
• BSI / TH (Beech ki pins): Yeh track patla hota hai.
  • Microscope se dekhein. Paas mein ek chota Black Resistor ya sunehra Test Point (TP) hoga.
  • Note: Agar BSI line ka resistor open ho gaya hai, toh wahan 0 Ohm ya 1K-10K Ohm ka resistor lagana pad sakta hai (Schematic ke anusaar).

Step 6: Thermal Error Fix (Hidden Fault)

Battery connector ke bagal mein aksar ek NTC Thermistor laga hota hai.

• Agar connector badalte waqt galti se yeh component ukhad gaya, toh phone charging rok dega aur screen par Temperature Warning dega.
• Iska dhyan rakhein aur ghum hone par wapas lagayein.

Summary Checklist

1. Diagnosis: DC Machine se check karein (Restart issue).
2. Visual: Carbon saaf karein aur pins lift karein.
3. Safety: Purana connector Neeche se heat dekar nikalein.
4. Installation: Naya connector Iron se lagayein.

💡 Aaj Ka Aapka Task – Lesson 33 (Comments & Forum)

1. Practical: Apne practice board par Battery Connector ko Neeche se heat (Bottom Heat) dekar nikaalne ki practice karein.
2. Comment (नीचे): Kya aapne kabhi dekha hai ki Battery Connector par carbon aane se phone Fake Charging karta hai? Yes/No likhein.
3. Forum: Agar board ke pads buri tarah ukhad gaye hain aur track nahi dikh raha, toh board ka photo Forum (forum.teamtw.in) par share kare.

Agla Lesson: Power mil gayi! Ab agar phone PC se connect na ho toh? Agla Lesson hai: “Lesson 34: USB Not Detecting Solution (Data Line D+/D- Fault)”।
