Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 32 hai.

Pichle lesson mein humne Current ka Rasta (VBUS to VBAT) trace kiya tha. Aaj hum haath ganda karenge aur seekhenge sabse zaroori skill: Charging Jack Replacement.

Charging Jack Replacement

Yeh sunne mein aasaan lagta hai, par kya aapke saath kabhi aisa hua hai?

1. Jack lagaya, charging chalu ho gayi, lekin Mic band ho gaya?
2. Type-C jack lagaya, par Fast Charging nahi ho rahi?
3. Jack 2 din baad grahak ke haath mein aa gaya (Ukhad gaya)?

Aaj hum in sabhi galtiyon ko sudharenge aur Professional Soldering seekhenge.

Step 1: Know Your Jack (Micro USB vs Type-C)

Kaam shuru karne se pehle, dushman ko pehchanein:

• Micro USB (V8): Ismein peeche 5 Pins hoti hain. Isey lagana aasaan hai kyunki saari pins dikhti hain.
• Type-C: Ismein 12, 16, ya 24 Pins ho sakti hain. Sabse badi dikkat yeh hai ki ismein pins ki 2 Rows (Lines) hoti hain. Ek bahar dikhti hai, aur ek jack ke neeche chupi hoti hai. Agar neeche wali pins connect nahi huin, toh Fast Charging aur OTG kaam nahi karega.

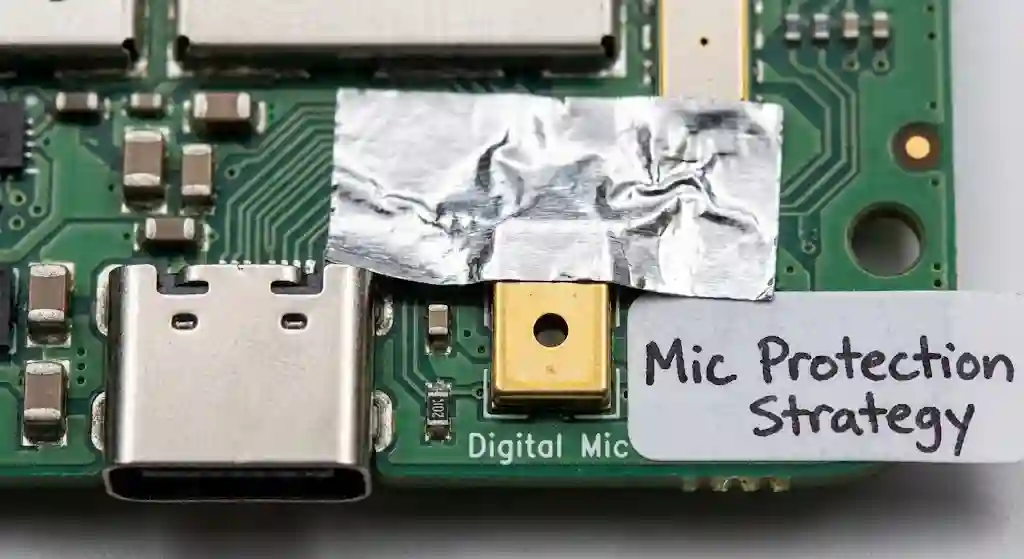

Step 2: The “Mic Protection” Protocol (Sabse Zaroori)

Charging Jack ke bilkul bagal mein aksar Digital Mic (Sunehra/Golden square component jisme chhed hota hai) laga hota hai.

Hot Gun ki garm hawa (350°C) is mic ke diaphragm ko turant pighla deti hai.

Suraksha Kavach:

1. Silver Tape (Heat Sink Tape): Jack nikalne se pehle, Mic ke upar Silver Tape ki 2-3 layers lagayein. Yeh tape heat ko reflect karti hai.
2. Coin Trick: Agar tape nahi hai, toh Mic ke upar ek chota Sikka (Coin) rakh dein. Sikka heat sokh lega.
3. Air Direction: Hot Gun chalate waqt hawa ka rukh hamesha Mic se bahar ki taraf hona chahiye, mic ki taraf nahi.

Step 3: Removing the Old Jack (Sahi Technique)

Jabardasti kheenchne se Board ke Prints (Tracks) ukhad jaate hain.

1. Flux: Jack ki pins aur legs par acchi quality ka Flux Paste lagayein.
2. Heat Settings: SMD Rework Station ko 350°C – 380°C Heat aur 3-4 Air par set karein (Mousam aur Machine ke hisaab se adjust karein).
3. Motion: Hot gun ko ek jagah na rokein, usey gol-gol (circular motion) ghumayein.
4. Lift: Jab aap dekhein ki Raanga (Solder) chandi jaisa chamakne laga hai aur jack apni jagah hil raha hai, tabhi usey chimti se seedha upar uthayein.

Step 4: Board Cleaning (Desoldering Wick Magic)

Naya jack lagane se pehle purani gandagi saaf karna zaroori hai.

1. Wick Use: Desoldering Wick (Copper wire strip) ko board ke holes par rakhein aur uske upar garm Iron rakhein. Wick saara purana solder chus legi.
2. Clear Holes: Jack ke 4 legs wale holes (chhed) aar-paar dikhne chahiye. Agar holes band rahenge, toh naya jack theek se baithega nahi.
3. Cleaning: Thinner/IPA aur brush se area ko saaf karein. Kala flux hatana zaroori hai.

Step 5: Preparing the New Jack (Tinning)

Naye jack ko seedha packet se nikal kar mat lagayein. Uski pins par Carbon hota hai.

• Action: Naye jack ki peeche wali pins par thoda flux aur solder lagakar unhein Chamka lein (Re-tinning). Isse wo board par turant chipak jayengi.

Step 6: Installation & Soldering (Iron vs Hot Gun)

Main hamesha Soldering Iron se jack lagana recommend karta hoon, Hot Gun se nahi. Kyunki Iron se jack plastic pighalta nahi hai.

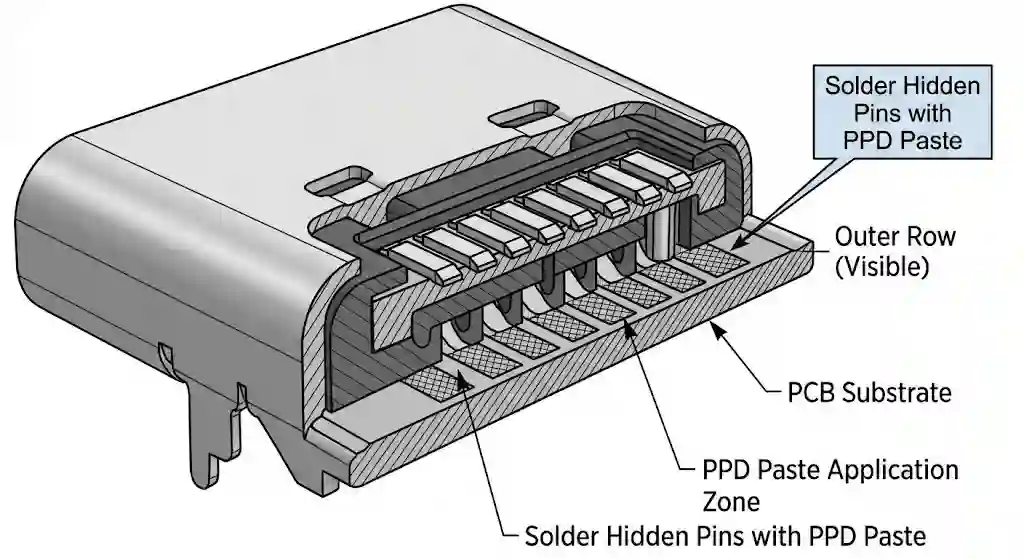

For Type-C (Hidden Pins Trick):

1. Board ke pads par thoda PPD Paste (183°C) lagayein.
2. Hot Gun se halki heat dein taaki PPD pighal kar balls ban jayein.
3. Ab Jack ko upar rakhein aur Neeche se Heat dein (agar board patla hai) ya upar se halki heat dein. PPD paste neeche chupi hui pins ko pakad lega.

Locking:

Jack bithane ke baad, sabse pehle uske 4 Legs ko dher saare solder se bhar dein. Jack ki mazbooti इन्हीं legs par hoti hai.

Pin Soldering:

Microscope ke neeche, ek patli bit wale Iron se peeche ki pins ko ek-ek karke solder karein. Dhyan rahe koi bhi do pins aapas mein Short (jud) na jayein.

Step 7: Final Testing (Fit Karne Se Pehle)

Jack lag gaya, ab check karein:

1. Cool Down: Board ko thanda hone dein.
2. Shorting Check: Multimeter (Beep Mode) se VBUS aur GND check karein. Shorting nahi honi chahiye.
3. Voltage Check: Charger lagayein aur Battery Connector par voltage check karein.
4. Visual Check: Microscope se dekhein ki saari pins judi hain aur Type-C ke andar ka plastic pighla toh nahi hai?

Summary Charging Jack Replacement Checklist

1. Mic Protection: Silver tape lagana na bhoolein.
2. Desoldering Wick: Holes ko saaf karein taaki jack poora baithe.
3. Tinning: Naye jack ki pins ko pehle solder karein.
4. Anchor: Legs ko mazbooti se solder karein, charger kheenchne par jack nahi aana chahiye.

💡 Aaj Ka Aapka Task – Lesson 32 (Comments & Forum)

1. Practical: Kisi scrap (kharab) board par 5 baar jack nikalne aur lagane ki practice karein. Koshish karein ki jack ka plastic na pighle.
2. Comment (नीचे): Kya aapne kabhi Type-C Jack lagaya aur wo “Slow Charging” karne laga? Iska kaaran kya tha?
3. Forum: Agar jack lagate waqt Board ke Prints (Tracks) ukhad gaye hain, toh Jumper Solution ke liye board ki photo Forum (forum.teamtw.in) par share karein.

Agla Lesson: Jack toh lag gaya, lekin agar Battery Connector hi toota ho ya BSI line break ho, toh kya karein? Agla Lesson hai: “Lesson 33: Battery Connector Replacement & BSI Jumper Ways”।
