Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 38 hai.
Aaj hum Dead Boot Repair ko us nazar se dekhenge jaise ek Software Engineer dekhta hai.
Jab Power IC voltage CPU ko deti hai, toh CPU turant ON nahi hota. Wo ek “Boot Sequence” chalata hai. Agar aapne is sequence ko samajh liya, toh aap DC Machine ki reading dekhkar bata denge ki galti CPU (Bottom) mein hai ya RAM (Top) mein.
Is post mein hum Dead Boot Repair ke liye Port Checking aur Hardware Handshake ko detail mein samjhenge.
Step 1: The “BootROM” Logic (Auto Port Kyun Banta Hai?)

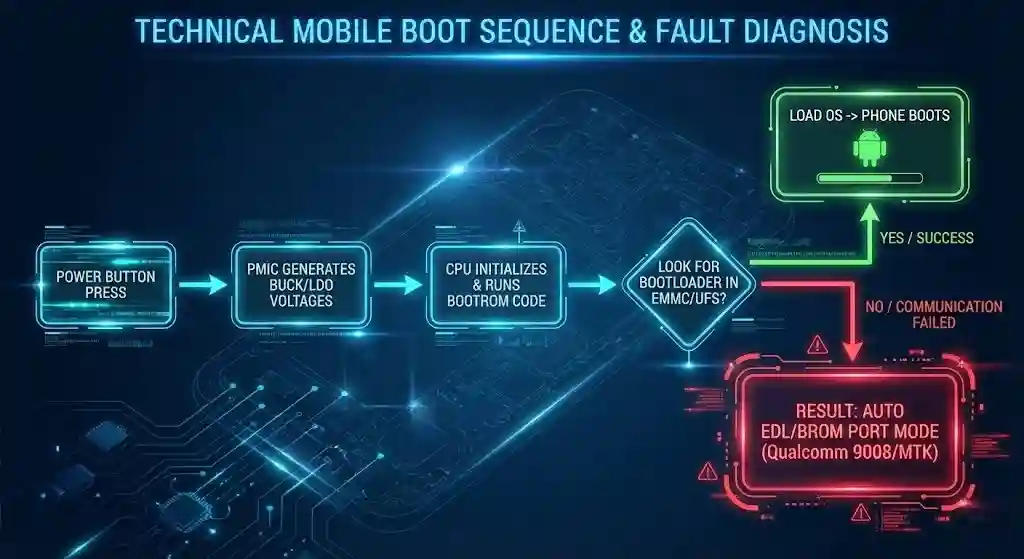

Kise bhi Dead Boot Repair case mein sabse pehla saboot “Port” hota hai. Jab CPU ko power milti hai, sabse pehle uska internal code “BootROM” run karta hai. BootROM ka kaam hai Storage (eMMC/UFS) se Bootloader (Preloader/XBL) maangna.
The Auto Port Science:
- Agar CPU ne Storage ko awaaz di (CLK/CMD lines ke through).
- Aur Storage ne Jawab Nahi Diya (Dead/Disconnected).
- Toh CPU samajh jaata hai ki “System Corrupt” hai ya “Storage Missing” hai.
- Safety ke liye CPU khud ko “Emergency Download Mode” (EDL/9008) mein daal leta hai.
Conclusion: Agar Auto Port ban raha hai, iska matlab CPU 100% OK hai, wo bas Storage ko dhoondh nahi pa raha.
Step 2: Port Analysis (Deep Dive)
Dead Boot Repair karte waqt sirf Port banna kaafi nahi, port ka Type samjhein:
- Qualcomm HS-USB QDLoader 9008:
- Manual: Button dabane par bana = Hardware OK, Software Fault.
- Auto: Bina button dabaye bana = eMMC/UFS Missing ya Dead.
- MediaTek (MTK):
- MediaTek USB Port (BROM): Yeh CPU ka direct port hai. Agar ye Auto ban raha hai = Storage Dead hai.
- MediaTek Preloader Port: Yeh tab banta hai jab CPU ne Storage ko padh liya hai. Agar ye aakar chala jaye = OS Corrupt hai (Flashing se theek hoga).
Step 3: DC Reading & The “Double Decker” Mystery
Aajkal ke 5G phones mein CPU ke upar RAM (LPDDR) rakhi hoti hai (Double Decker). Yahan DC reading bahut important hai.
Advance Dead Boot Repair Diagnosis Table:
| DC Reading (Amp) | Status | Fault Diagnosis |
| 0.000 – 0.002 | No Response | Power IC Input/Output Missing or Crystal Dead. |
| 0.010 – 0.040 (Stuck) | I2C Init Fail | CPU ko Power mil gayi hai, par wo Clock (Crystal) ya I2C lines check kar raha hai. |

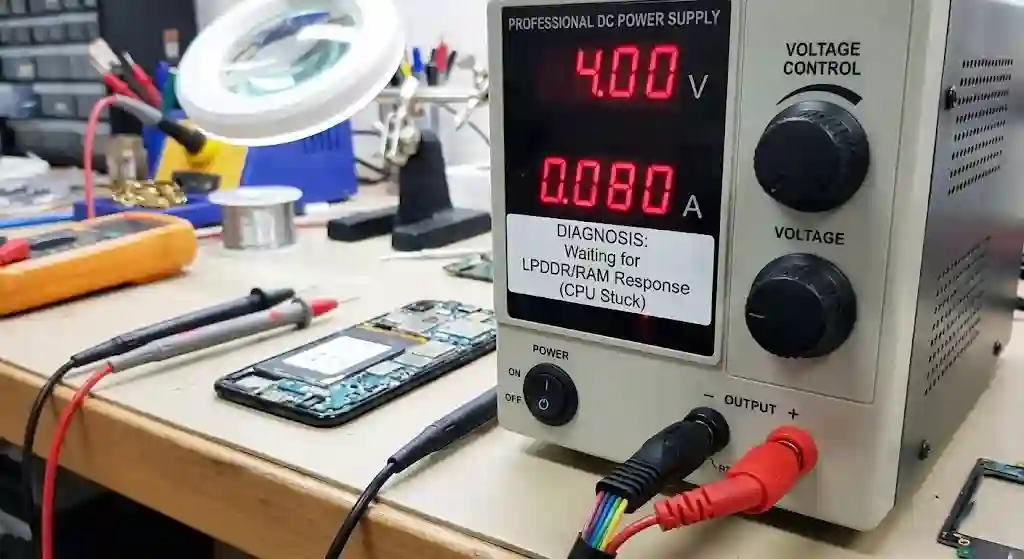

| 0.060 – 0.080 (Stuck) | RAM Missing | CPU ON ho gaya hai, lekin usey RAM (Top Layer) nahi mil rahi. (Double Decker Reballing Required). |
| 0.080 – 0.150 (Stuck) | Storage Missing | CPU aur RAM OK hain, lekin eMMC/UFS detect nahi ho rahi. (Auto Port banega). |
| 0.180 – 0.250 (Fluctuate) | Boot Loop | Hardware OK hai. Software/Firmware corrupt hai. |
Step 4: UFS vs eMMC Voltage Check (Before Lifting IC)
IC uthane se pehle voltages check karein. Agar voltage hi nahi milega toh Dead Boot Repair safal nahi hoga.
- eMMC: Isko VCC (2.9V) aur VCCQ (1.8V) chahiye.
- UFS (Universal Flash Storage): Isko teen voltages chahiye:
- VCC (2.9V)
- VCCQ (1.2V)
- VCCQ2 (1.8V)
- Diagnosis: Agar Auto Port ban raha hai, toh eMMC/UFS ke paas in capacitors par voltage check karein. Agar voltage missing hai, toh galti Power IC ki hai, Storage ki nahi.
Step 5: Thermal Diagnosis (Is CPU Melting?)
Kabhi-kabhi DC reading 0.200+ hoti hai aur atak jaati hai.
- Finger check karein.
- Agar CPU turant Bahut Garam (Overheat) ho raha hai, toh CPU Internal Short hai. Iska koi ilaaj nahi hai (Swap karna padega).
Summary Checklist (Pro Level)
- Protocol Check: Auto Port (EDL/BROM) = CPU OK, Storage Fault.
- RAM Check: 0.06-0.08 Stuck Reading = Double Decker (RAM) Issue.
- Voltage Check: eMMC/UFS ke voltages (VCC, VCCQ) verify karein.
- Final Step: Dead Boot Repair mein pehle voltage, phir software, phir hardware reballing karein.
💡 Aaj Ka Aapka Task – Lesson 38 (Comments & Forum)
- Practical: Apne DC Machine ki cable ko check karein. Agar cable local hai toh wo 0.010 ka error dikhayegi. Diagnosis galat ho sakta hai.
- Comment (नीचे): Kya aapne kabhi Double Decker CPU (jaise Samsung A50/A51) reball kiya hai? Haath ki safai kaisi hai?
- Forum: Agar phone
900E(Diagnostics Mode) mein ja raha hai 9008 ki jagah, toh iska solution Forum (forum.teamtw.in) par dhoondhein (Hint: Deep Flash Cable).
Agla Lesson: Dead Boot repair seekh liya! Ab hardware mein kuch specific sections bache hain. Agar phone ON hai lekin Awaaz (Sound) nahi aa rahi ya Mic kaam nahi kar raha?
Agla Lesson hai: “Lesson 39: Audio IC Faults (Ringer, Mic, Codec & Smart PA)”।
