Mobile Audio Problem Solution: Mic, Speaker & Smart PA Repair | Lesson 25

Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 25 hai.

Aaj hum baat karenge Mobile Audio Problem Solution ke baare mein.
Pehle phones mein audio simple tha, lekin aajkal “Digital Audio” ka zamana hai.

Mobile Audio Problem Solution: Mic, Speaker & Smart PA Repair

Grahak ki shikayat: “Bhaiya, awaaz phat rahi hai,” ya “Meri awaaz saamne nahi ja rahi (Mic Dead),” ya “Ringtone nahi baj rahi.”

Aaj hum seekhenge: Digital Mic (CL/DATA), Smart PA (Ringer IC), aur Receiver Testing.

Step 1: Low Sound Problem (Gandagi Ki Safai)

Agar awaaz aa rahi hai lekin bahut dheemi (Low) hai:

• Reason: Speaker/Receiver ki jali (Mesh) mein dhool jam gayi hai.
• Fix: Bina phone khole, ek Toothbrush aur thoda sa IPA lekar jali ko saaf karein. Ya fir ek barik sui (needle) se jali ke chhed khol dein. 90% cases yahin solve ho jaate hain.

Step 2: Component Testing (Multimeter Se Check)

Agar awaaz bilkul nahi aa rahi, toh component check karein. (Multimeter: Ohm Mode).

1. Receiver (Earpiece):
   • Value: 25 Ohms se 35 Ohms.
   • Status: Beep + Value = OK. No Beep = Kharab.
2. Ringer (Loudspeaker):
   • Value: 8 Ohms se 12 Ohms.
   • Status: Beep + Value = OK. No Beep = Kharab.

Step 3: Digital Mic Check (Pro Level)

Aajkal ke phones mein 2-wire wala mic nahi, balki 3, 4 ya 5 Pin wala Digital Mic hota hai. Ise Multimeter se check karna mushkil hai, isliye hum Voltage check karte hain.

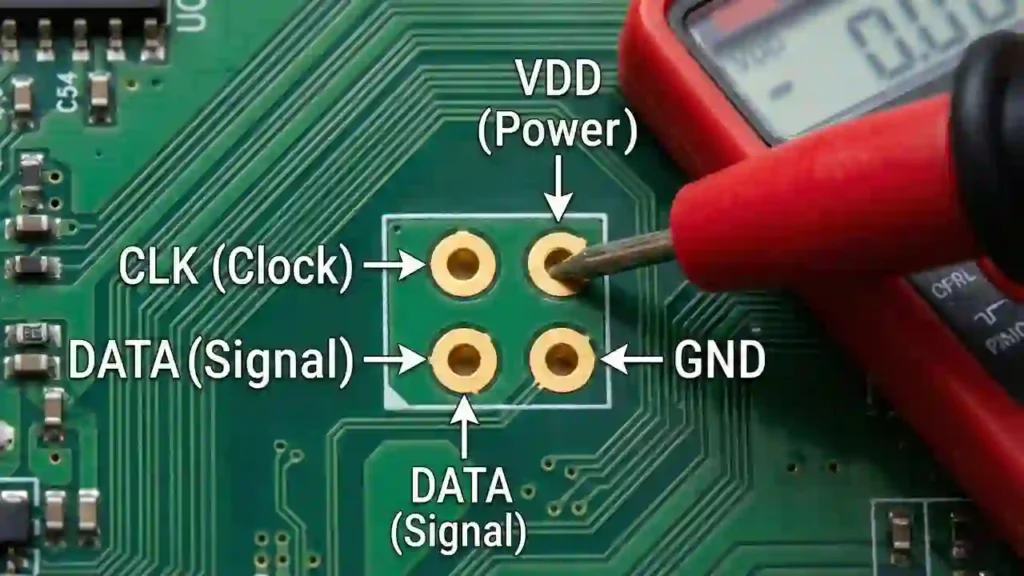

Mic Pad Testing (Hot Testing):

1. Phone ON karein aur Voice Recorder chalu karein (Recording start karein).
2. Mic ke pads par Voltage check karein:
   • VDD (Power): 1.8V se 2.8V aana chahiye.
   • CLK (Clock): Frequency signal (Voltage fluctuate karega).
3. Result: Agar VDD (Power) nahi aa raha, toh Power IC ya Audio Codec se line tooti hai. Agar voltage aa raha hai, toh Mic Change karein.

⚠️ Caution: Digital Mic ko lagate waqt Hot Gun ka Air aur Heat kam rakhein (300°C / 2 Air), warna mic jal jayega.

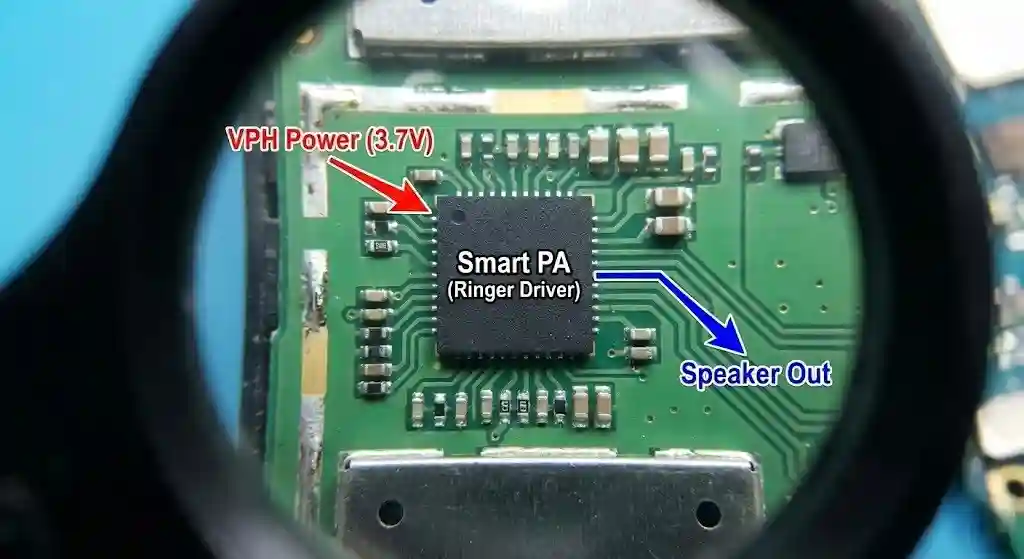

Step 4: Ringer Not Working (Smart PA / Audio IC)

Agar naya Speaker lagane par bhi awaaz nahi aayi, toh check karein “Ringer IC” (jise Smart PA kehte hain).

• Kya hai: Yeh ek choti IC hoti hai jo Battery (VPH) se power lekar speaker ko boost karti hai.
• Check (Hot Testing):
  1. Ringer IC ke paas bade Capacitor par 3.7V – 4.2V (VPH) check karein.
  2. Agar 3.7V nahi mil raha, toh IC ko power nahi mil rahi (Coil open ho sakti hai).
  3. Agar power hai par sound nahi, toh Ringer IC Change karein.

Step 5: Headphone Mode (No Sound Trap)

Agar screen par Headphone ka nishan hai (bina headphone laye):

• Fix:
  1. Headphone Jack ko IPA se saaf karein.
  2. Jack ke paas lage chote capacitors check karein (Shorting ke liye).
  3. Agar na hate, toh “Disable Headphone” App install karke check karein ya Jack remove karein.

Summary Checklist

1. Low Sound: Jali saaf karein.
2. Mic Dead: Voice Recorder chala kar VDD Voltage check karein.
3. Ringer Dead: Ringer IC (Smart PA) par 3.7V (VPH) check karein.
4. Headphone Icon: Jack cleaning aur shorting check.

💡 Aaj Ka Aapka Task – Lesson 25 (Comments & Forum)

1. Practical: Apne multimeter se kisi purane digital mic (4-pin) ke pads par GR Value (Diode Mode) check karein.
2. Comment (नीचे): Kya aapne kabhi “Smart PA” IC badli hai? (Zyadaatar MI/Redmi phones mein kharab hoti hai). Yes/No likhe.
3. Forum: Agar Mic ke print ukhad gaye hain, toh Jumper solution ke liye board ki photo Forum (forum.teamtw.in) par share kare.

Agla Lesson: Multimedia section ke baad ab hum “Network” ki duniya mein chalenge. Agla lesson hai: “Lesson 26: Mobile Camera Problem Solution: Camera Failed & Black Screen Fix”।
