Mobile Repairing Tools List In Hindi: Professional Lab Ke Liye Complete Guide (Prices Ke Sath) | Lesson 7

(Affiliate Disclaimer):

Note: Is post mein diye gaye tools ke links affiliate links ho sakte hain. Agar aap in links se khareedte hain, toh humein chhota sa commission milta hai, par aapki price wahi rehti hai.

Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 7 (Mobile Repairing Tools List) hai.

Kya aap Mobile Repairing seekhna chahte hain ya apni lab ko upgrade karna chahte hain? Mobile repairing me sahi knowledge ke sath-sath sahi tools ka hona bhi utna hi zaroori hai.

Is lesson me, hum un sabhi zaroori tools ke bare me janenge jo ek mobile technician ke paas hone chahiye. Humne is list ko PDF aur market standards ke hisaab se banaya hai.

Mobile Repairing Tools List

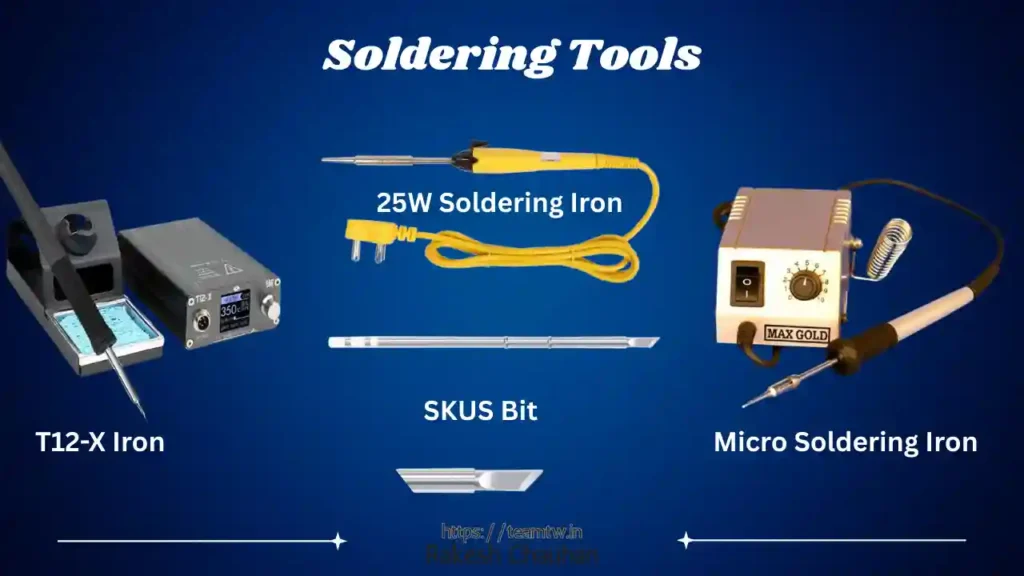

1. Soldering Tools (सोल्डरिंग टूल्स)

Mobile ke components ko nikalne aur lagane ke liye:

• 25W Soldering Iron: Moti soldering (display connector) ke liye. Soldron best hai. (₹300-400 approx). [Buy Now]
• Micro Soldering Iron: Jumper aur baarik kaam ke liye. Maxx Gold best hai. (₹400 approx). [Link]
• T12-X Soldering Station (Pro): Sirf 30 seconds me garam, auto sleep feature. OSS Team best hai (₹2400 approx). [Link]
  • 💡 Pro Tip: Iske sath aane wali bit (tip) moti hoti hai. Mobile repairing ke liye “SKUS Bit” alag se khareedein (₹250 approx).
• 60W Temperature Adjustable Iron: Agar T12-X ka budget nahi hai, to 908 model use karein (₹400 approx).
• Iron Stand: Iron ko rakhne ke liye zaroori hai taaki hath ya table na jale.

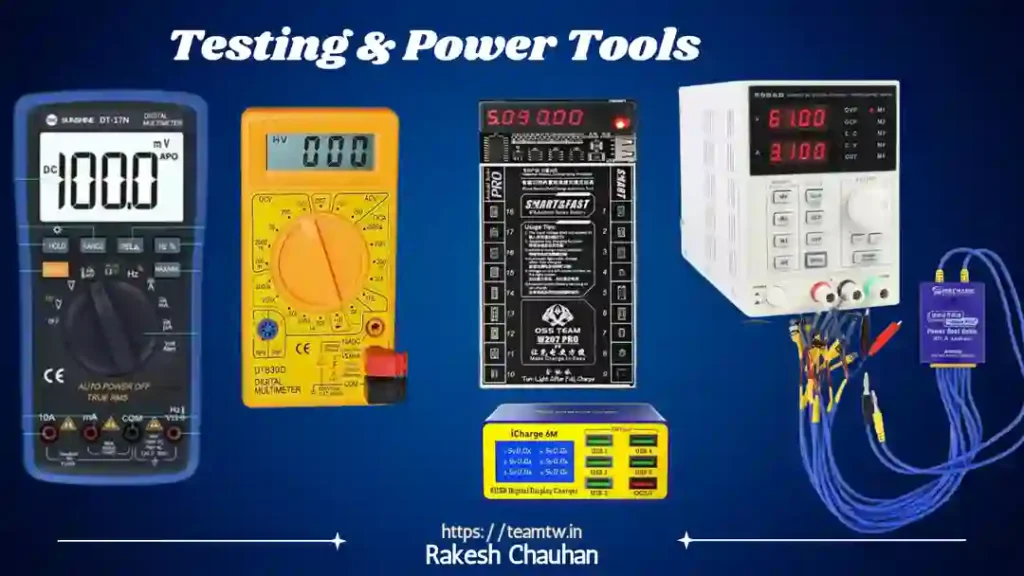

2. Testing & Power Tools (टेस्टिंग टूल्स)

• Multimeter:
  • Sunshine DT-17N: Best accuracy for mobile (₹1500 approx). [Link]
  • HTC LCR-4070: Sirf Coil/Capacitor (LCR) check karne ke liye (₹2500 approx).
  • Fluke 101: Most accurate Pro tool (₹4000 approx). [Buy Now]
  • (Sasta Option: Yellow DT-830 – ₹150). [Buy Now]
• DC Power Supply: Phone on karne aur shorting pakadne ke liye.
  • Sugon 3005D (30V 5A): Best option (₹4000+). [Link]
  • (Budget Option: 15V 2A Machine – ₹1000).
• Boot Cables: DC machine se phone connect karne ke liye (Android/iPhone connectors).
• 6-Port USB iCharger: Digital display wala charger. Mechanic best hai. [Link]
• Battery Booster (Activation Board): Deep discharge battery ko uthane ke liye.

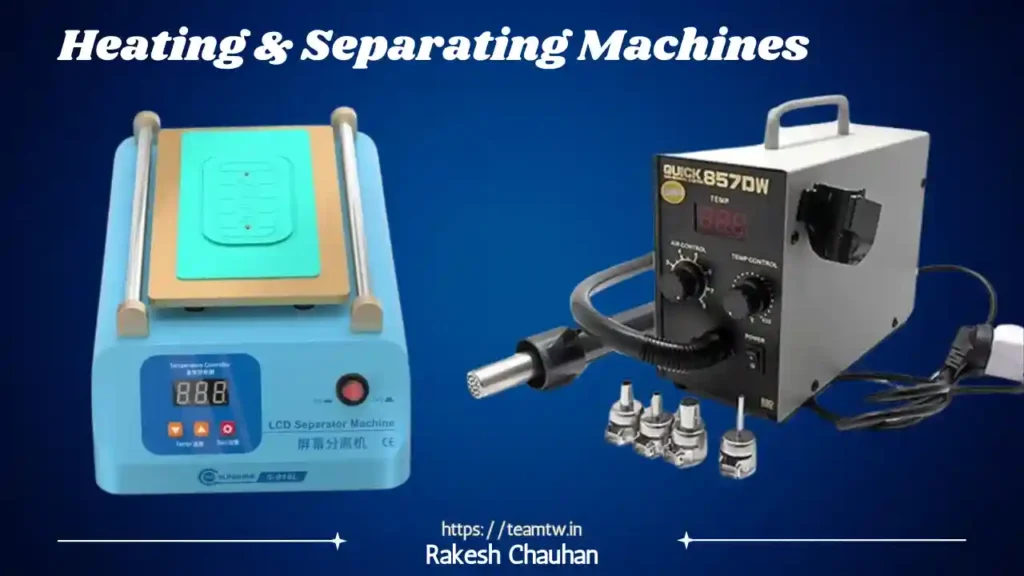

3. Heating & Separating Machines

• SMD Rework Station (Hot Air Gun):
  • Quick 857DW+: Best model (₹5000 approx). [Link]
  • 💡 Safety Tip: SMD ko hamesha uske switch se band karein, seedhe plug na nikalein taaki handle thanda ho sake.
• LCD Separator Machine: Touch/Display alag karne ke liye (₹2000+).
  • Separator Wire: Cutting ke liye 0.03mm – 0.08mm wire.

4. Hand Tools (हाथ के औज़ार)

• Screwdriver Kit: Taparia ya Jakemy multi-bit set.
• Opener: Phone kholne ke liye.
• Tweezers (Chimti): Mechanic TC-11 (Tedi/Seedhi).
• PCB Stand: Board ko pakad ke rakhne ke liye (₹150-1500).
• IC Stand: IC saaf karne/reballing ke waqt pakadne ke liye (₹500+).
• Cutter: Shield (Jali) kaatne ke liye Armsol (ASL-108) best hai.
• Blade Handle & Set: Glue saaf karne ke liye 11 no. surgical blade ya Mechanic Imax-9 set.
• Brushes:
  • Cleaning: Toothbrush.
  • IC Cleaning: Sunshine SS-022b (Steel brush).
  • Paste Applying: 0 Number Painting Brush (Paste lagane ke liye best).
• ESD Mat: Table par bichhane ke liye.

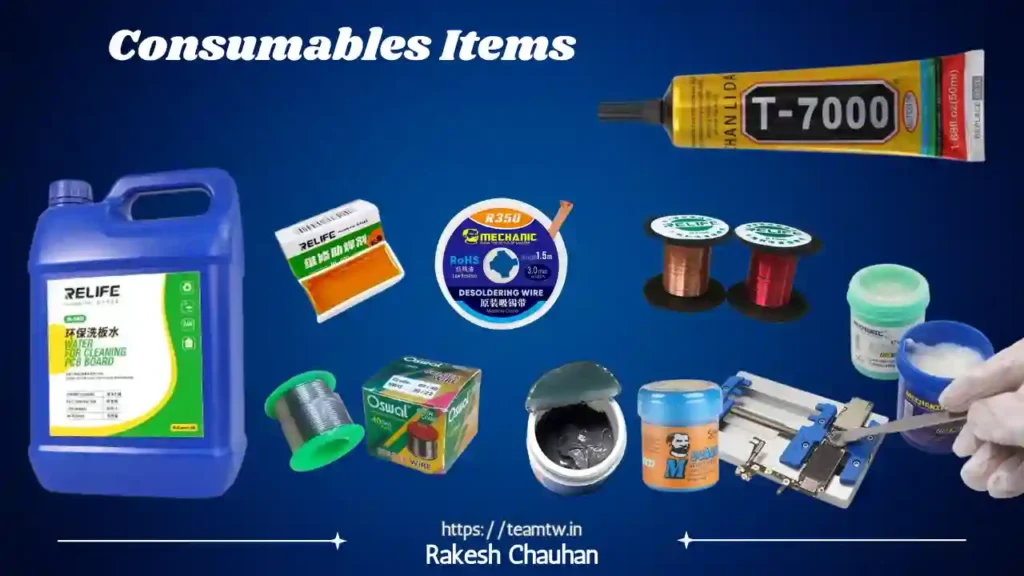

5. Consumables Item(पेस्ट, वायर और केमिकल)

• Flux Paste: Mechanic UV-559 ya BS-10 (Original).
• PPD Paste: Reballing ke liye. Mechanic/MaAnt.
  • 138°C: Board saaf karne ke liye.
  • 183°C: Reballing ke liye.
• Rosin Paste: Shorting check karne (smoke method) ke liye.
• Solder Wire: Oswal (60/40 grade).
• Jumper Wire: 0.01mm wire.
• Micro Jumper Pads: Ukhde hue pads (prints) ko repair karne ke liye readymade pads (Jaise Relife RL-007GA).
• De-Solder Wire (Wick): Solder saaf karne ke liye Mechanic R350.
• PCB Cleaner (IPA): Relife RL-5000 ya Asian Paints Thinner.
• Glue: T-7000 ya Mechanic.
• Glue Remover Liquid: Falcon 530 spray.
• Tapes:
  • Golden/Silver Tape: Heat se bachane ke liye.
  • Paper Tape: Normal use ke liye.
• UV Kit: UV Glue + UV Torch (Jumper dhakne ke liye).
• Tissue/Cotton: Safai ke liye.

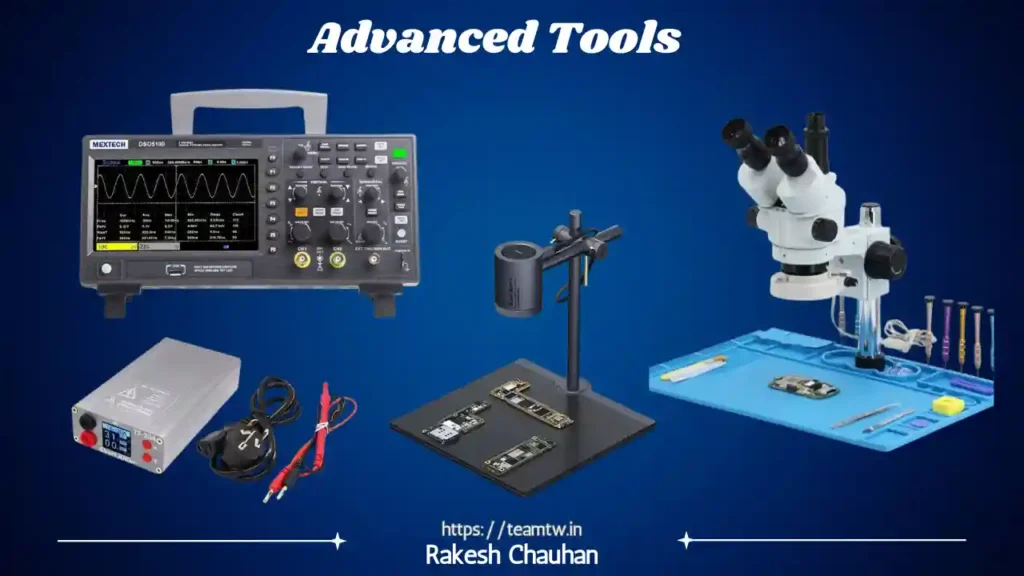

6. Advanced Tools (Future Upgrade)

• Microscope: (₹15,000 – ₹50,000).
• Short Killer: Full shorting hatane ke liye.
• Glue Remover Motor: Display glue hatane ke liye.
• Thermal Camera: Shorting dekhne ke liye (₹20,000+).
• DSO Machine: Signals check karne ke liye.
• Stencil: IC Reballing ke liye jaali (Relife/Mega Idea).

Read past lesson Click here

Conclusion (निष्कर्ष)

Mobile repairing me success paane ke liye ache tools me invest karna bahut zaroori hai. Sasta tool apka kaam kharab kar sakta hai.

💡 Aaj Ka Aapka Task – Lesson 7 (Comments & Forum)

1. Shopping List: Apne budget ke hisaab se list banayein.
2. Comment: Aap abhi kaunsa Multimeter use kar rahe hain?
3. Forum: Tools ke links aur review ke liye humare Forum (forum.teamtw.in) par “Tools Section” check karein.

Agla Lesson: Ab tools aa gaye hain! Agla lesson 7 hai: “Safety First: ESD Kya Hai? (Apne aur phone ko kaise bachayein)”।
