Mobile Schematic Diagram Basics: How to Read Layout & Circuit | Lesson 35

Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 35 hai.

Aaj hum Mobile Repairing ki “PhD” shuru kar rahe hain. Ab tak hum “Tukka” (Guesswork) aur “Experience” se kaam kar rahe the. Lekin agar koi naya model aa jaye jiska solution YouTube par na ho, tab aap kya karenge?

Tab kaam aata hai Schematic Diagram. aaj hum seekhene wale Mobile Schematic Diagram Basics: How to Read Layout & Circuit . Yeh motherboard ka woh “Blueprint” ya “Naksha” hai jo company ke engineers banate hain. Agar aapko yeh padhna aa gaya, toh aap kisi bhi phone ka koi bhi track (rasta) dhoondh sakte hain.

Aaj hum seekhenge: Layout aur Schematic ka antar, Symbols ka matlab, aur Sahi Tracing Technique.

Step 1: The Two Pillars (Layout vs Schematic)

Schematic software (jaise Borneo, Pragmafix) kholne par aapko 2 alag files milti hain. Inhein samajhna zaroori hai:

1. PCB Layout (The Physical Map):

• Dikhne mein: Yeh motherboard ki drawing hoti hai. Ismein parts ke Asli Aakaar (Shape) aur Jagah (Location) dikhti hai.
• Kaam: Yeh batata hai ki “Resistor R201” board par kahan laga hai? CPU ke bagal mein hai ya peeche?
• Code: Har component par ek code likha hota hai (e.g., C401, U201). Isey “Reference Designator” kehte hain.

2. Schematic Diagram (The Logical Map):

• Dikhne mein: Yeh kaali-safed lines aur symbols ka jaal hota hai. Ismein board ki photo nahi hoti.
• Kaam: Yeh batata hai ki “Resistor R201” kaam kya kar raha hai aur kisse juda hai.
• Logic: Layout “Sharir” (Body) hai, aur Schematic “Nas” (Veins/Nerves) hai.

Step 2: The Language of Engineers (Symbols & Codes)

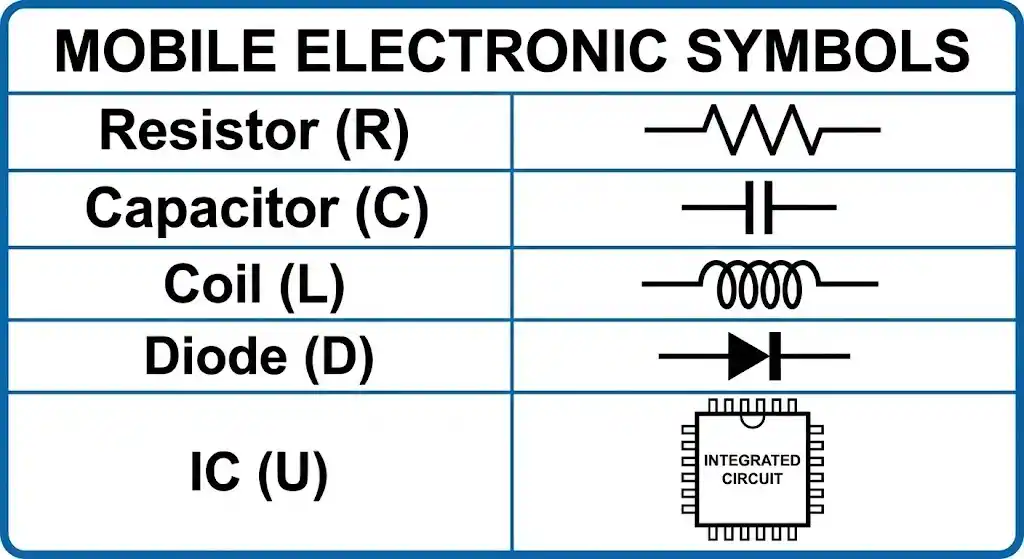

Schematic mein “Speaker” ya “Battery” likha hua nahi milega. Wahan Symbols (Chinha) aur Codes honge.

Basic Codes (Rat Lein):

• R: Resistor (Current rokne wala).
• C: Capacitor (Filter karne wala).
• L: Coil / Inductor (Buck/Boost karne wala).
• D: Diode (Protection/Rectification).
• U: IC (Integrated Circuit – Power IC, CPU, etc.).
• J / CON: Jack ya Connector (Battery Connector, Display Jack).
• TP: Test Point (Golden dot jahan voltage check karte hain).
• ANT: Antenna.

Step 3: “Copy-Paste” Tracing Technique (Sabse Zaroori Skill)

Maan lijiye aapke paas ek phone hai jisme Display Light nahi aa rahi. Aapko nahi pata Light IC kahan hai. Kaise dhoondhenge?

Follow These 4 Steps:

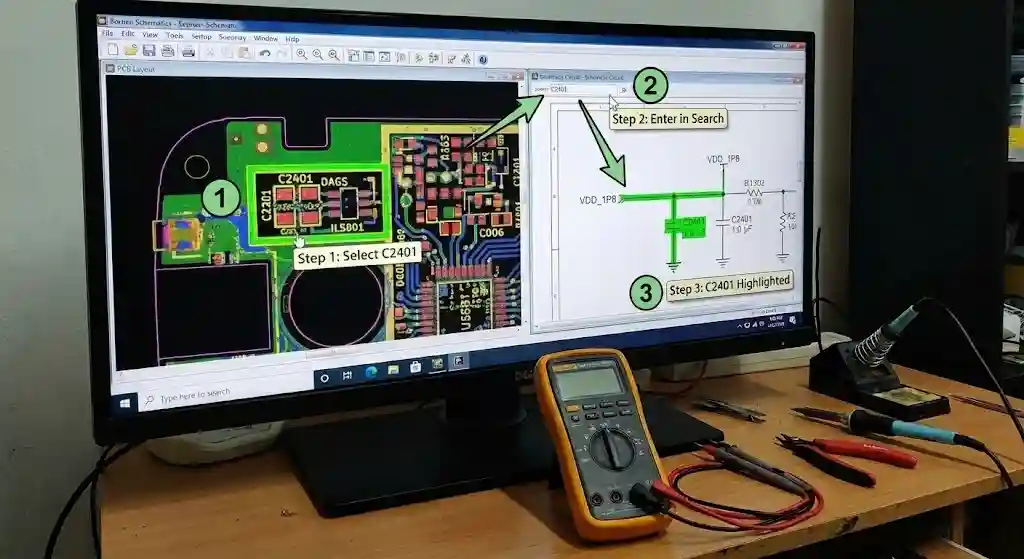

1. Find Connector (Layout): Layout mein dekhein ki Display Connector kahan hai. Maan lo uska code J2001 hai.
2. Search in Schematic: Schematic wale page par Find/Search box mein J2001 type karein. Aapko diagram mein Connector mil jayega.
3. Read Lines (Net Names): Connector ki pins par likhe naam padhein. Aapko wahan “LED_A” (Anode) ya “VLED” dikhega.
4. Trace Backward: Us line par click karein. Software dikhayega ki ye line kahan se aa rahi hai.
   • Shayad raste mein ek Diode (D) hai.
   • Uske peeche ek Boost Coil (L) hai.
   • Aur wo Coil ek 6-Leg ki IC (U) se judi hai.
   • Conclusion: Wahi 6-Leg wali IC aapki Light IC hai!

Step 4: Net Names (Lines Ke Naam)

Schematic mein har line ka ek naam hota hai. Inhein “Net Name” kehte hain. Inhein padhkar aap aadha fault samajh jayenge:

• VBUS / VCHG: Charging Line (5V).
• VBAT / VSYS: Battery Line (3.7V – 4.2V).
• VPH_PWR: Main System Power (Power IC input).
• LDO: Low Voltage Output (Cameras/Sensors ke liye).
• MCLK / CLK: Clock Line (Frequency).
• DATA / SDA: Data Line.
• EN: Enable Signal (IC ko ON karne wala switch).

Step 5: Bitmap vs Schematic (Fark Samjhein)

Aajkal Borneo mein “Hardware Solution” (Bitmap) aata hai jisme rangeen lakeerein (colorful lines) hoti hain.

• Bitmap: Aasaan hai, jaldi solution deta hai. Par yeh sirf Rasta dikhata hai, Component ki Value nahi batata.
• Schematic: Mushkil hai, par yeh batata hai ki wo component 10k Resistor hai ya 100k. Agar koi resistor kho gaya, toh bina Schematic ke aap sahi value ka naya resistor nahi laga payenge.

Summary Checklist for Mobile Schematic Diagram Basics

1. Reference: R=Resistor, C=Capacitor, U=IC.
2. Workflow: Layout se Code Copy karo -> Schematic mein Paste karo.
3. Values: Khoye hue component ki value sirf Schematic batata hai.
4. Net Names: Line ka naam padhkar uska kaam samjhein (e.g., LED_A = Light).

💡 Aaj Ka Aapka Task – Lesson 35 (Comments & Forum)

1. Practical: Google par “Samsung J2 Schematic PDF” search karein (Yeh free mein mil jaata hai). Download karein aur Power IC (U) dhoondhne ki koshish karein.
2. Comment (नीचे): Kya aapne kabhi note kiya hai ki Schematic mein Ground line aksar nahi banayi jaati, bas ek symbol hota hai? Yes/No likhein.
3. Forum: Agar aapko kisi Schematic ka symbol samajh nahi aa raha (jaise Zener Diode vs TVS Diode), toh screenshot Forum (forum.teamtw.in) par share karein.

Agla Lesson: Schematic padhna shuru kar diya, par Diagram mein “U” (IC) dikh rahi hai. Agla Lesson hai: “Lesson 36: IC Reballing Master Class: BGA Repair & Stencil Tricks”।
