SIM Card Not Detecting Solution: Insert SIM Problem & 6-Pin Voltage Check | Lesson 30

Team Tekno World ke free mobile repairing course mein aapka swagat hai! Main hoon Rakesh Chauhan, aur yeh humara Lesson 30 hai.

Aaj hum Week 5 (Connectivity) ko complete kar rahe hain, aur topic hai smartphone ki sabse basic zaroorat: SIM Card.
Aaj hum sikhne wale hai SIM Card Not Detecting Solution: Insert SIM Problem & 6-Pin Voltage Check.

Phone chahe 50 hazaar ka ho, agar wo SIM detect nahi kar raha, toh wo sirf ek WiFi wala tablet bankar reh jaata hai.

Grahak ki shikayat:

1. “Bhaiya, SIM tray mein SIM hai par phone bol raha hai ‘Insert SIM’.”
2. “Network bars par ‘Cross (X)’ ka nishan aa raha hai.”
3. “SIM lagate hi ‘Invalid SIM’ ka message aa raha hai.”

Aaj hum SIM Card Not Detecting Solution ka poora post-mortem karenge—Physical Damage se lekar Circuit Tracing tak.

Step 1: Diagnosis (Baseband vs Socket Fault)

Sabse pehle yeh confirm karein ki bimaari hardware hai ya software. Phone kholne ki jaldi na karein.

• IMEI Check: Dialer mein *#06# type karein.
  • Case A (IMEI Show ho raha hai): Iska matlab aapka CPU aur Baseband IC bilkul theek kaam kar rahe hain. Problem SIM Socket ya uske connection mein hai. (Aaj hum isi ko theek karenge).
  • Case B (IMEI Null / Unknown): Agar IMEI gayab hai, toh aap chahe poora connector badal dein, SIM nahi chalegi. Yeh Software ya Baseband IC ka fault hai. (Iske liye Lesson 23 refer karein).

Step 2: Physical Inspection (Ankhon Ka Dhokha)

Hardware fault mein 80% cases mein SIM Jacket (Reader) kharab hoti hai.

1. SIM Card Cleaning: Sabse pehle SIM card ke golden pads ko ek Eraser (Rubber) se ragad kar saaf karein. Carbon aane se phone SIM ko read nahi kar paata.
2. Jacket Check: Microscope ya Lens se SIM slot ke andar ki pins dekhein.
   • Problem: Log aksar SIM Adapter (Nano to Micro) use karte hain. Jab wo usey kheenchate hain, toh andar ki pins Mudd (Bend) jaati hain ya toot jaati hain.
   • Fix: Agar pin dabi hui hai, toh Sui (Needle) se usey upar uthayein (Lift karein). Agar tooti hai, toh SIM Jacket Replace karein.

Step 3: Voltage Check (VSIM 1.8V) – [Hot Testing]

SIM Card ek electronic chip hai, aur har chip ko chalne ke liye Power chahiye.

• Kab Check Karein: SIM Connector par voltage hamesha nahi rehta. Yeh tabhi aata hai jab Phone ON hota hai (Booting time) ya jab SIM insert ki jaati hai.
• Testing Process:
  1. Phone restart karein.
  2. Multimeter (20V DC) ki Red probe ko Pin 1 (VCC) par rakhein aur Black ko Ground par.
  3. Shuru ke 10 se 20 second mein wahan 1.8V se 2.8V aana chahiye.
• Result:
  • Voltage Aaya aur Chala Gaya: Yeh Normal hai. Agar SIM nahi mili, toh Power IC supply band kar deti hai. Iska matlab Power IC OK hai.
  • Voltage Kabhi Nahi Aaya: Power IC se supply cut gayi hai. Track check karein.

Step 4: The 6-Pin Diagnosis (Cold Testing – GR Value)

Agar Voltage aa raha hai, par SIM detect nahi ho rahi, toh iska matlab Communication (Baat-Cheet) mein dikkat hai. SIM aur CPU ke beech Data transfer nahi ho raha.

Multimeter ko Diode Mode par rakhein. Red Probe ko Ground par lagayein aur Black se check karein:

Solution:

Agar CLK, RST, ya I/O par reading nahi aa rahi (OL hai), toh schematic mein dekhein. In lines ke beech mein aksar Series Resistors lage hote hain. Wo open ho jaate hain. Unhein Short (Jumper) kar dein.

Step 5: The Hidden Villain (SIM Detection Switch)

Bahut se technicians SIM Jacket badal dete hain, fir bhi “Insert SIM” nahi jaata. Wajah? SIM Detection Pin.

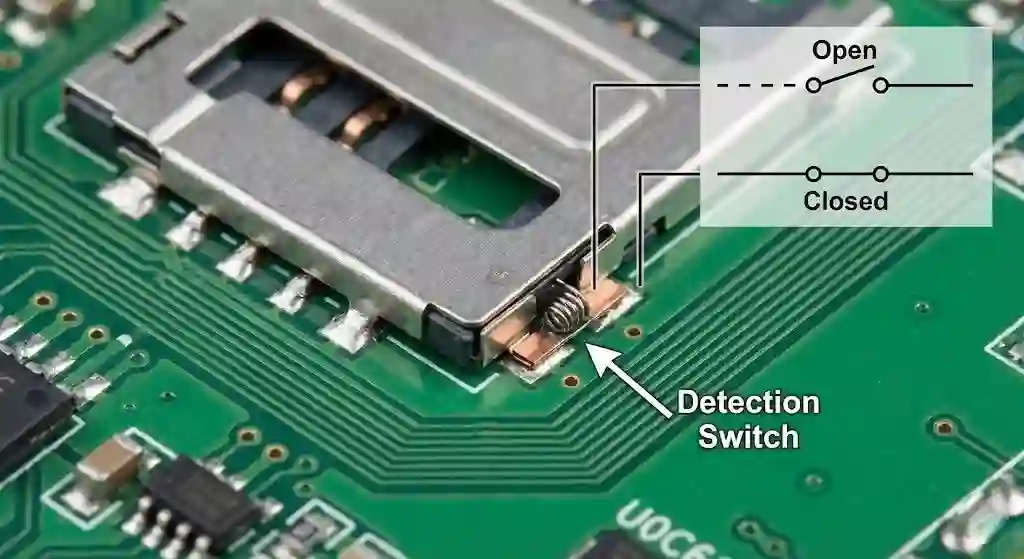

• Logic: SIM Tray wale phones mein kone mein ek chota sa Switch (7th Pin) hota hai. Jab aap tray andar daalte hain, yeh switch dabta hai aur CPU ko batata hai: “Tray lag gayi hai, ab SIM padhna shuru karo.”
• Fault: Agar yeh switch kharab ho jaye, toh CPU SIM padhne ki koshish hi nahi karega.
• Fix: Is switch ki continuity check karein. Tray lagane par isey Short (Beep) hona chahiye. Agar kharab hai, toh aap in dono points ko aapas mein Direct Jumper kar sakte hain (Lekin fir phone hamesha sochega ki tray andar hai).

Step 6: “Invalid SIM” (Software ya Lock)

Agar phone “Insert SIM” nahi, balki “Invalid SIM” bol raha hai:

• Iska matlab phone ne SIM detect kar li hai (Hardware OK hai).
• Lekin wo us SIM ko accept nahi kar raha.
• Reason: Yeh phone Country Locked ho sakta hai (jaise bahar desh ka iPhone). Iske liye aapko Software Unlock (RSIM/Server) karwana padega.

Summary SIM Card Not Detecting Solution Checklist

1. IMEI: Check karein (Null = Software).
2. Physical: Jacket ki pins aur SIM card saaf karein.
3. VSIM (Hot Test): Booting ke waqt 1.8V check karein.
4. GR Value (Cold Test): CLK, RST, aur I/O pins par 300-600 reading honi chahiye.
5. Detection Switch: Check karein ki tray lagane par switch short ho raha hai ya nahi.

💡 Aaj Ka Aapka Task – Lesson 30 (Comments & Forum)

1. Practical: Apne multimeter se kisi bhi chalu phone ke SIM slot ki Pin 1 (VCC) par voltage check karein jab phone restart ho raha ho.
2. Comment (नीचे): Kya aapne kabhi Detection Switch (7th Pin) ko jumper karke problem solve ki hai? Yes/No likhein.
3. Forum: Agar SIM ke tracks (pads) board se ukhad gaye hain, toh Jumper Diagram ke liye board ka model Forum (forum.teamtw.in) par share karein.

Agla Lesson: Connectivity Week complete! 🥳

Ab hum Week 6 (Circuit & Component Level Repair) mein enter karenge. Agla topic mobile repairing ka sabse common lekin complex kaam hai—Paani mein gire phone ko bachana.

Agla Lesson hai: “Lesson 31: Charging Section Repair: VBUS, VPH, VBAT & BSI Line Tracing “।
