USB Not Detecting Solution: Fast Charging & D+ D- Line Repair

Grahak ki shikayat:

1. “Bhaiya, phone charge ho raha hai, lekin computer se connect nahi ho raha (Data Transfer fail).”
2. “Software/Unlocking karwana hai, lekin PC mein Port hi nahi ban raha.”
3. “Charging bahut slow ho rahi hai (Sirf 400-500 mA le raha hai).”

Agar phone PC se connect nahi hoga, toh aap na photos nikaal payenge aur na hi Flashing kar payenge. Iska raaz chupa hai D+ (Data Plus) aur D- (Data Minus) lines mein.

Step 1: The Theory (VBUS vs Data Lines)

Log sochte hain ki Charging Jack sirf charge karne ke liye hota hai. Yeh galat hai!

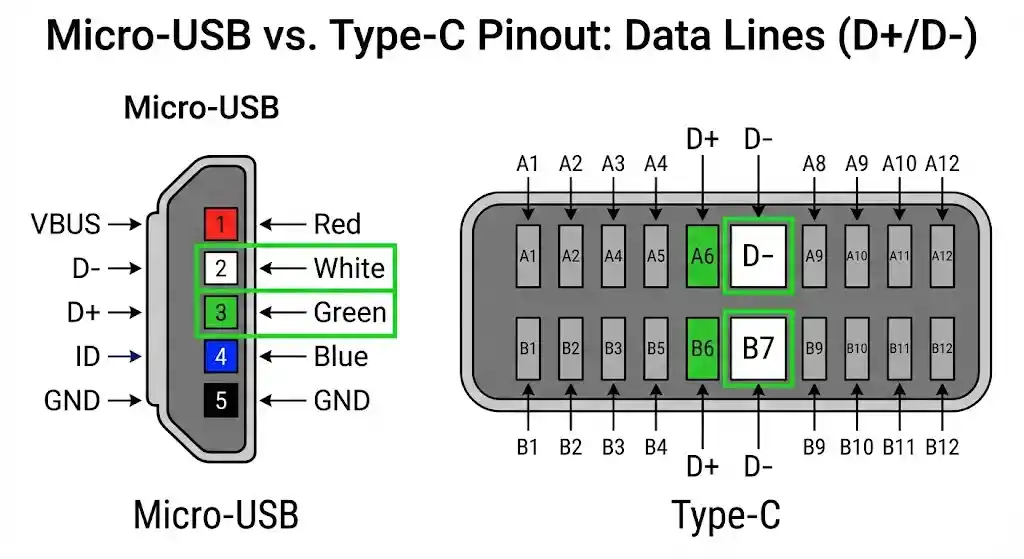

USB Cable mein 4 main taarein (wires) hoti hain:

1. Red (VBUS): 5V Power (Charging ke liye).
2. Black (GND): Ground.
3. White (D-): Data Minus.
4. Green (D+): Data Plus.

Logic Samjhe:

• Agar VBUS theek hai, toh phone Charge Hoga.
• Lekin agar D+/D- kharab hai, toh phone Connect Nahi Hoga aur sabse badi baat—Fast Charging bhi nahi karega.

Step 2: Diagnosis (Drivers vs Hardware)

Phone kholne se pehle confirm karein ki galti Phone ki hai, Cable ki hai, ya Computer ke Drivers ki.

1. Cable Test: Sabse pehle ek achi quality ki Original Data Cable try karein. 50% cases mein cable kharab hoti hai (Charge karti hai par data nahi deti).
2. Device Manager Check:
   • Phone ko PC se connect karein.
   • Computer mein Device Manager open karein.
   • Condition A (OK): Agar “Android ADB Interface” ya “MTP Device” dikhaye = Hardware OK hai (Driver install karein).
   • Condition B (Fault): Agar “Unknown USB Device (Device Descriptor Request Failed)” dikhaye = Hardware Fault hai (D+/D- lines mein gadbad hai).
   • Condition C (Dead): Agar connect karne par koi awaaz hi na aaye = Jack ki data pins ukhad gayi hain.

Step 3: Visual Inspection (Jack Check)

Phone kholein aur Charging Jack ko Microscope se dekhein.

• Micro USB: Beech ki 2 pins (D- aur D+) board se ukhad toh nahi gayi? Aksar charging (kinare wali pins) judi rehti hai par data pins hawa mein hoti hain.
• Type-C: Type-C mein data pins jack ke peeche chupi hoti hain. Check karein ki Dry Solder toh nahi hain.

Step 4: The Cold Testing (GR Value Magic)

Agar Jack theek dikh raha hai, toh Multimeter (Diode Mode) se check karein.

1. Settings: Red Probe ko Ground par rakhein aur Black Probe se Jack ki Data pins check karein.
2. Reading (GR Value):
   • D- (Data Minus): 300 se 700.
   • D+ (Data Plus): 300 se 700.
3. Golden Rule:Dono pins par reading Lagbhag Same honi chahiye (e.g., agar ek par 500 hai toh dusre par 502).
   • Fault 1 (OL): Agar reading ‘1’ hai = Rasta toota hua hai.
   • Fault 2 (Short): Agar 0.00 (Beep) hai = CPU ya Power IC short hai.

Step 5: Tracing & Jumper Solution (Resistors)

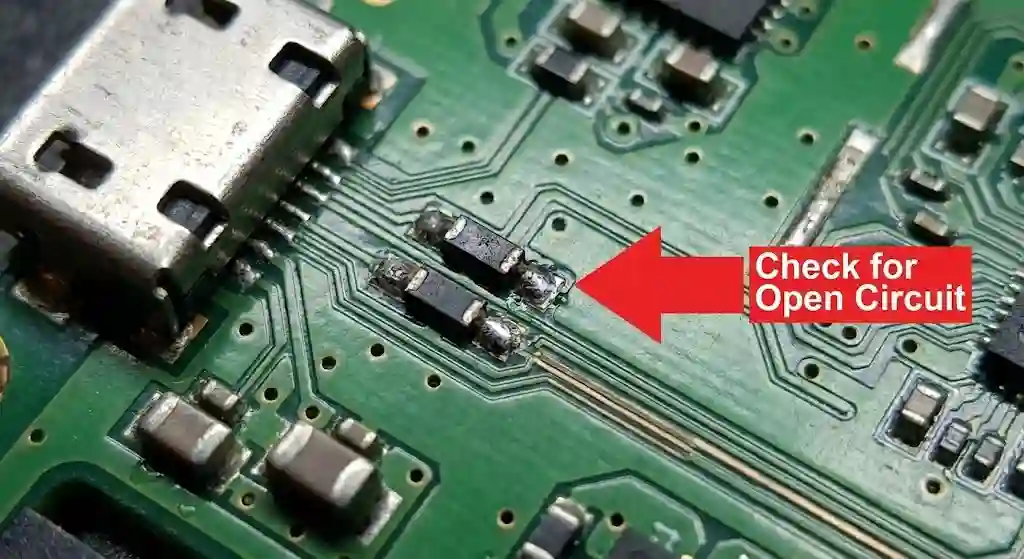

Agar Reading nahi aa rahi (OL), toh Jack se CPU tak ka rasta trace karein.

• Components: Jack se nikalte hi raaste mein aksar Do Chhote Resistors ya Dual Coils lagi hoti hain series mein.
• Check: Multimeter se in components ke dono taraf check karein.
  • Agar component ke ek taraf reading hai aur dusri taraf nahi = Component Open (Kharab) hai.
  • Solution: Aap inhein nikaal kar Direct Jumper (Short) kar sakte hain. (Emergency mein jumper chalega, par permanent fix ke liye resistor lagayein).

Step 6: Slow Charging Connection (The Handshake)

Yeh point dhyan se padhein: Fast Charging ke liye Phone aur Charger aapas mein baat karte hain (Handshake).

• Yeh baat-cheet D+ aur D- lines ke zariye hoti hai.
• Agar Data line tooti hogi, toh CPU ko pata hi nahi chalega ki charger Original hai ya Local.
• Isliye, CPU safety ke liye charging speed ko Slow (0.5 Amp) kar dega.
• Conclusion: Agar phone dheere charge ho raha hai, toh pehle Data Lines check karein.

Summary Checklist for USB Not Detecting Solution

1. Cable: Pehle Data Cable badlein.
2. Visual: Jack ki beech wali pins check karein.
3. GR Value: D+/D- par 300-700 ki same reading aani chahiye.
4. Resistors: Raste mein lage series resistors/coils ko check karke jumper karein.

💡 Aaj Ka Aapka Task – Lesson 34 (Comments & Forum)

1. Practical: Apne phone ko PC se connect karein aur check karein ki wo “Fast Charging” show kar raha hai ya “Charging slowly”.
2. Comment (नीचे): Kya aapne kabhi note kiya hai ki local cable se phone dheere charge hota hai? Wajah: Unmein Data wires patli hoti hain.
3. Forum: Agar board par D+ ka track nahi mil raha, toh board ka model number Forum (forum.teamtw.in) par share kare.

Agla Lesson: Hardware Diagnosis poora hua! 🥳 Ab hum mobile repairing ke sabse powerful tool ki taraf badhenge—“Schematic Diagram”. Bina nakshe (Map) ke khazana (Fault) kaise dhoondhenge? Agla Lesson hai: “Lesson 35: Mobile Schematic Diagram Basics (Borneo/Pragma Intro)”।
